SAGARYT


Ultimate glass
decoration machine

SAGARYT - SGA machine

SAGARYT presents a unique technology
for creating artistic decorations on glass

SAGARYT is equipped with
diamond head grinder
with adjustable RPM and adjustable force
for the best results in glass engraving.

Short video presentation

Product description


  • SAGARYT is one purpose machine for Artistic glass engraving

  • Is equipped with diamond head grinder

  • Works with 3 axis and it is capable of doing 3D effects on glass

  • With various size of grinder heads, can create very thin lines, but also thick lines

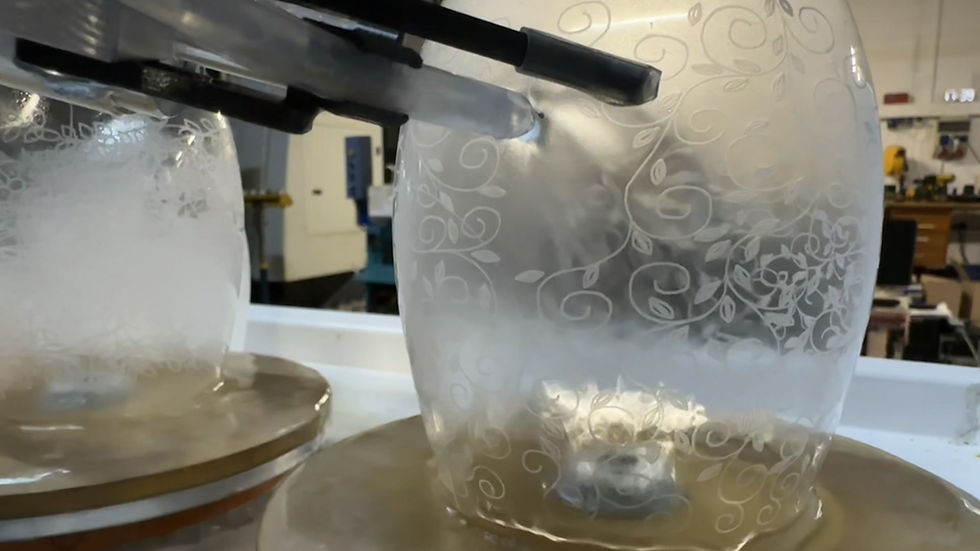

  • With our software and hardware solution is also capable of doing the "sand glass effect"

How it Works ?

You only need 4 simple steps to start working with the SAGARYT machine

1. Draw or open existing decor from our huge database
2. Enter the glass and decor parameters
3. On main panel, press "Fix" button
4. After successful glass fixation, press "start" button

SAGARYT machine use our inhouse developed SAGARYT 4 control software


  • With this software you can create your own designs

  • Design should be based on your imagination

  • Or you can redraw it from picture

Machine controlls

The latest version of SAGARYT machine is equipped with 32-bit processors
These processors controls all of machine parameters and functionalities

For better performance, each arm has its own processor
that directly communicates with the Master unit.

These processors allows to add OLED display and Encoder
on the Master panel and also on every single Grinder arm

This panels allows the operator to quickly check or possibly change parameters

Master UI Panel

  1. Equipped with 1.3" Oled

  2. Displays Telemetric Data and Parameters

  3. Global RPM and Pressure control

  4. Servo Travel distance control

  5. Servo Travel speed control

Grinder Arm Panel

  1. Equipped with 0.96" Oled

  2. Displays Telemetric Data and Parameters

  3. Individual grinder RPM control

  4. Servo position correction


  • SAGARYT machine is controlled by a PC trough USB controller inside of machine.

  • On pc you can see the progress of the decor.

  • Also you can control parameters of the machine.


USB CABLE

PC COMPUTER


SAGARYT

Machine Features

The latest generation of SAGARYT SGA machine
is equipped with whole new grinder control system


UI panel with OLED and Encoder

DC motor with feedback

Servo with more precise positioning

Plug and Play electronics inside body

Reengineered electronics can now starts

DC motor to operation RPM in less than 180ms

And with new braking system the grinder completely stop for less than 60ms

With these numbers SAGARYT SGA could produce stunning lines without the dots at beginning and ending

We redesigned the grinder force controlling system, which is now more precise
and could be individually controlled from main panel
or from computer (to be soon)​​​

Machine Output

With combination all of SAGARYT SGA features you can create stunning decorations

Options

SAGARYT SGA machine got 3 size options:

  1.  2  position machine - for small production about 128pcs per shiff​​

  2.  6  position machine - for middle production about 384pcs per shift

  3. 10 position machine - for huge glass factories about 640pcs per shift

*Production quantity depends on decor complexity (average decor time is 8minutes)

Depends on glass you want decorate, you can choose the plate diameter:

  1.  150mm

  2.  250mm

  3.  250mm​​

SAGARYT Taniere_4.png

For bottle and tall glasses (Champagne)
SAGARYT SGA comes equipped with a bespoke holder for this type of glass.

SAGARYT Držiak Vaz.png

Specifications

Machine Size
2 position
6 positions
10 positions
Unit
Width
800
800
800
kg
Lenght
950
2190
2190
mm
Height
1260
1260
1260
mm
Weight
117
218
226
mm
Machine power
2 positions
6 positions
10 positions
Unit
Input frequency
50
50
50
Hz
Input voltage
230
230
230
V
Input power
460
480
480
W
Machine capacity
2 positions
6 positions
10 positions
Pieces/Shift (8hrs)
128
384
640

*Production quantity depends on decor complexity (average decor time is 8minutes)

Machine specs
2 position
6 position
10 position
Unit
Vacuum
-92
-92
-92
kPa
Compressed Air
< 40
< 40
< 40
mBar
XY Motion Feedback Controll
Closed Loop
Closed Loop
Closed Loop
Our machines are
RELIABLE
EASTY TO MAINTAIN
HIGHLY EFFICIENT

  • easy to operate (after training)

  • have a short return on investment

We also offer:

  • 2 years warranty on our products

  • Support service (Remote/OnBoard)

  • We offer warranty and after warranty maintenance

  • Ships machines and components all around the world

Thanks to this we have satisfied customers all over the world
